$0.00
Feature:
1. Worktable Size: 1000*500mm
2. X/Y/Z axis travel: 860/510/560mm
3. Max load of worktable: 500mm

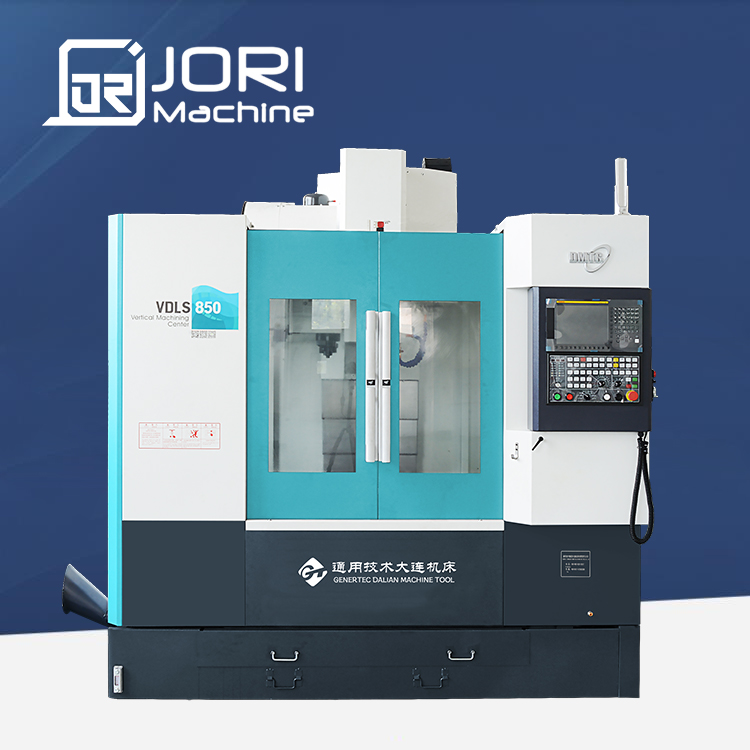

DMTG’s main products are Conventional lathes, Flat and slant Bed CNC Lathes, CNC Milling Machines, Vertical Machining Centers, 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers, and Automatic lines, etc.
| Items | Unit | Parameter |
| Table | ||
| Worktable size | mm | 1000*500 |
| T-Slot (Quantity*Width*Distance) | mm | 5*18*100 |
| Max load of worktable | kg | 500 |
| Travel | ||
| X/Y/Z axis travel | mm | 860/510/560 |
| X/Y/Z axis guideway type | mm | Linear guideway |
| Distance from spindle center to column | mm | 607 |
| Distance from spindle nose to table | mm | 145~705 |
| Feedrate | ||
| Rapid traverse of X/Y/Z axis | m/min | 36/36/30 |
| Cutting feed rate | mm/min | 0~10000 |
| Spindle | ||

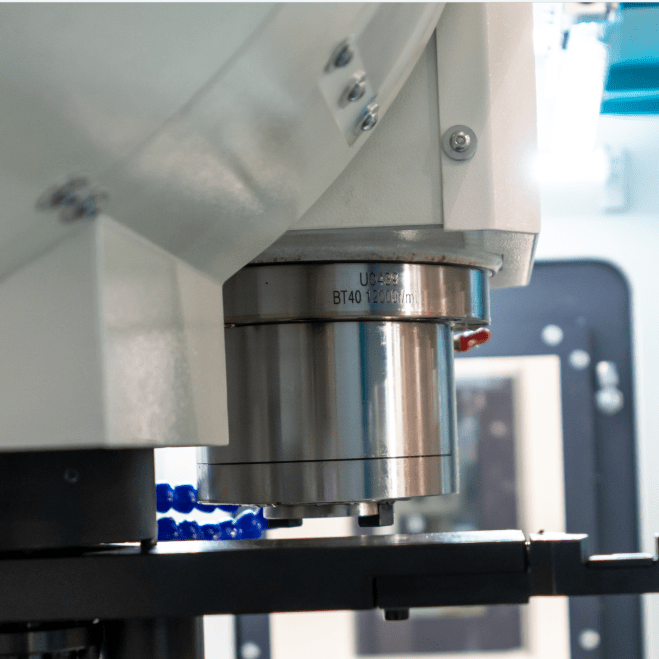

| Max spindle speed | r/min | 12000 |
| Spindle taper | No.40 (7:24) | |
| ATC system | ||
| Tool magazine capacity | 24T/Arm | |
| Tool shank type | BT40 | |
| Max tool weight | kg | 8 |
| Max tool diameter (w/o adjacent tools) | mm | 24T: φ78/155 |
| Max tool length | mm | 300 |
| Time of tool change (T-T) | s | 24T: 2.5 |
| Accuracy | ||
| X/Y/Z axis positioning accuracy | mm | 0.008/0.008/0.008 |
| X/Y/Z axis repeatability accuracy | mm | 0.005/0.005/0.005 |
| Control System and Motor | ||
| Control system | Fanuc, Siemens, GSK, etc. | |
| Spindle servo motor | βiI8/12000-8 (7.5/11kW) (35.8/70Nm) | |
| Three axis servo motors | X/Y：βiSc 12/3000-B Z：βiS22/3000 B-B
（1.8/1.8/3 kW）（11/11/20 Nm） (3000/3000/3000r/min) |
|
| General | ||
| Machine dimensions (L*W*H) | mm | 2496*2530*2679 |
| Packing Size | mm | 2310*3600*2565 |
| Net weight/Gross weight | kg | 5600kg/6240kg |
