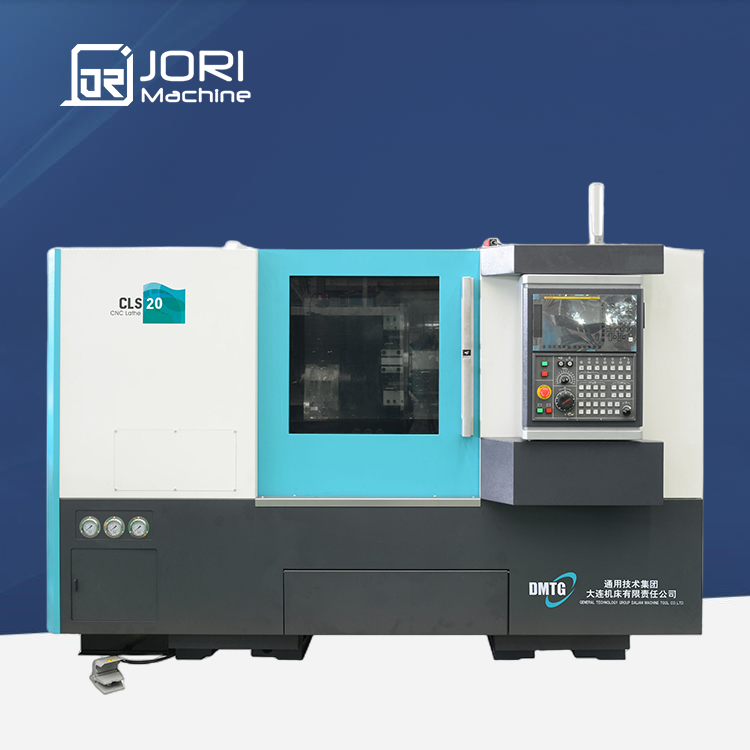

Swing over bed: ∅ 500mm
Turning length: ∅ 450mm
Turning diameter: 260/300mm
DMTG’s main products are Conventional lathes, Flat and slant Bed CNC Lathes, CNC Milling Machines, Vertical Machining Centers, 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers, and Automatic lines, etc.

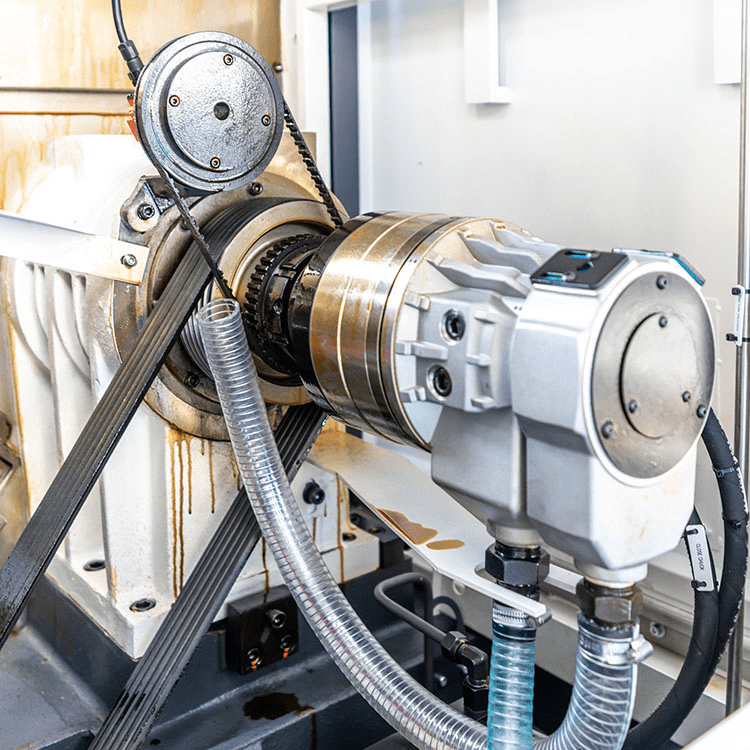

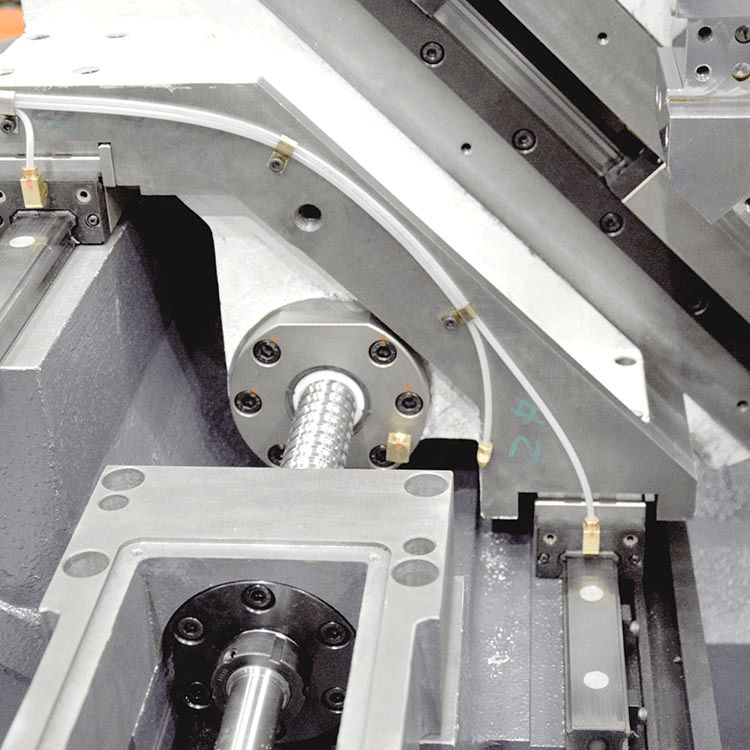

| Items | Unit | Parameter |
| Capacity | ||
| Maximum swing over the bed diameter | mm | 500 |
| Maximum turning length | mm | 450 |
| Maximum turning diameter (shaft/disk) | mm | 260/300 |
| Spindle | ||
| Chuck size | Inch | 8 |
| Spindle nose | ISOA2-6 | |
| Spindle hole diameter | mm | 62 |
| Spindle speed | rpm | 4500 |
| Spindle motor power | Kw | 11/15 |
| Spindle torque | Nm | 93/127 |
| Max bar diameter | mm | 51 |
| Travel | ||
| X-axis travel | mm | 165 |
| Z-axis travel | mm | 500 |
| Rapid traverse of X axis | m/min | 20 |
| Rapid traverse of Z axis | m/min | 24 |
| Tool turret | ||

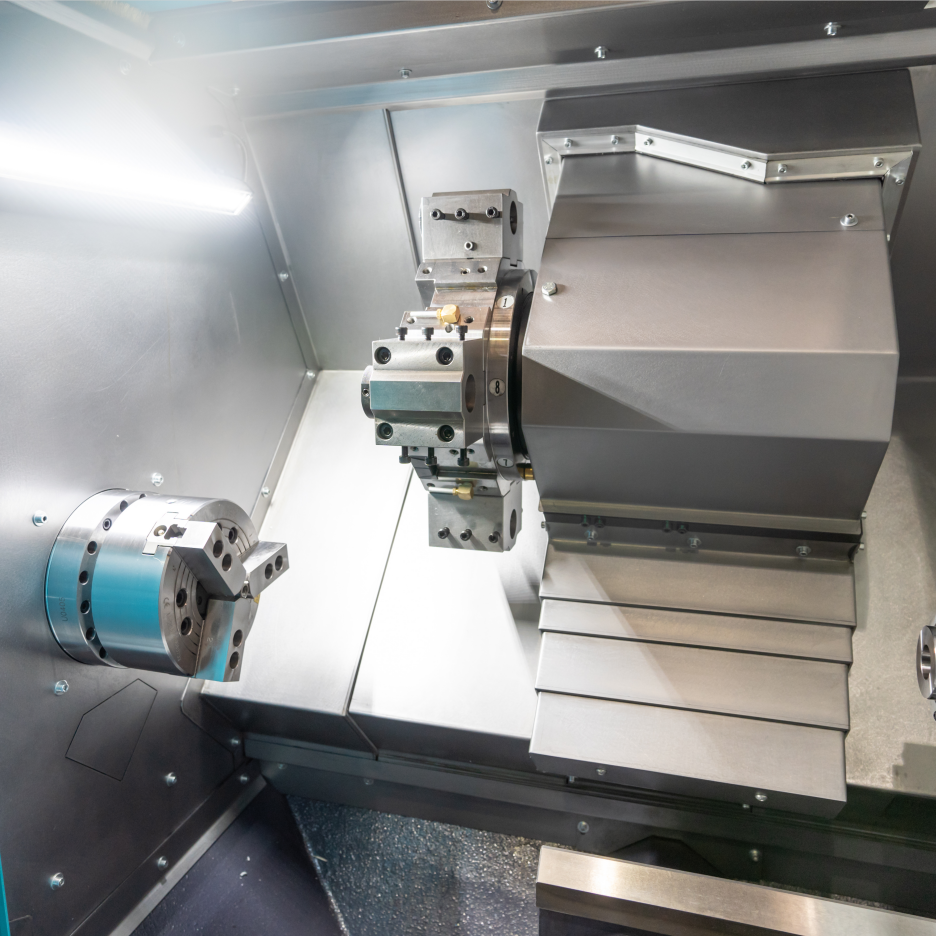

| Turret type and tool number | 8-position hydraulic tool turret | |
| Tool shank size | mm | 25×25 |
| Indexing time (nearest/farthest) | s | 0.45/1.2 |

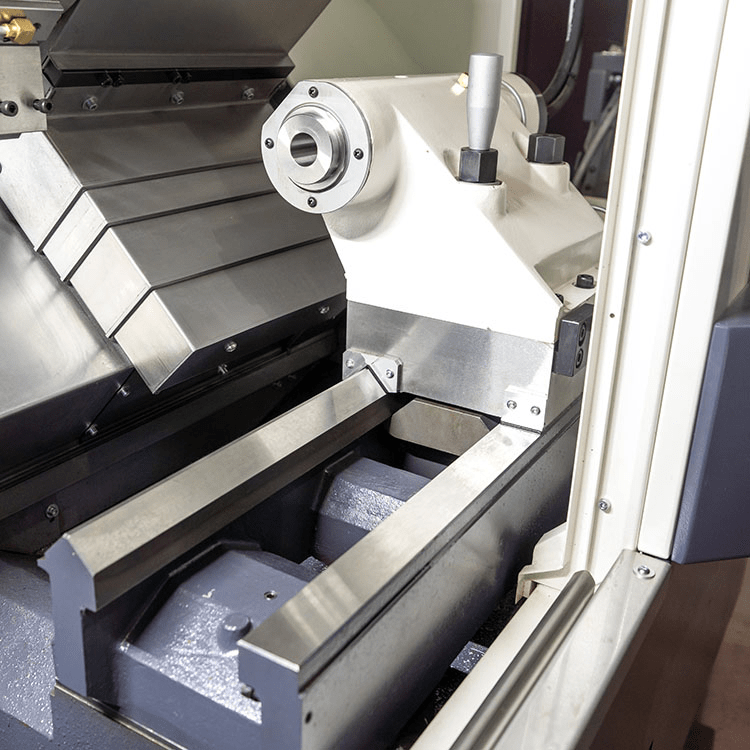

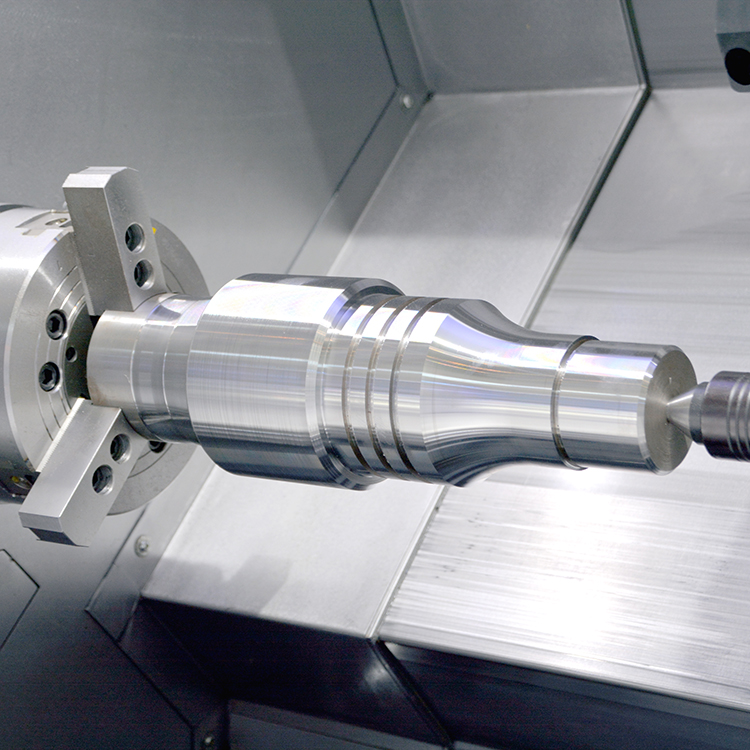

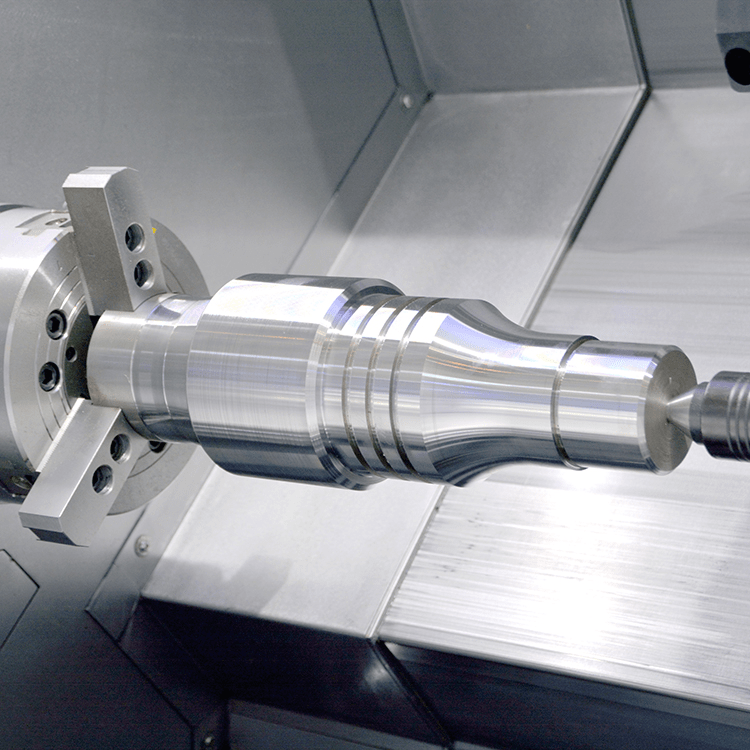

| Tail stock | ||
| Tailstock quill diameter | mm | 80 |
| Tailstock quill travel | mm | 130 |
| Accuracy | ||
| X/Z axis positioning accuracy | mm | 0.011/0.011 |
| X/Z axis repeatability accuracy | mm | 0.004/0.004 |
| Control system and motor | ||
| CNC controller | FANUC 0i-TF(5) PLUS | |
| Spindle motor | βiⅠ12/10000-B (11/15 kW）(70/95.5 Nm)
(10000r/min) |
|
| X/Z axis motors | X：βiSc 8/3000-B Z：βiSc 12/2000-B
（1.2/1.4kW）（7/10.5 Nm） (3000/2000r/min) |
|
