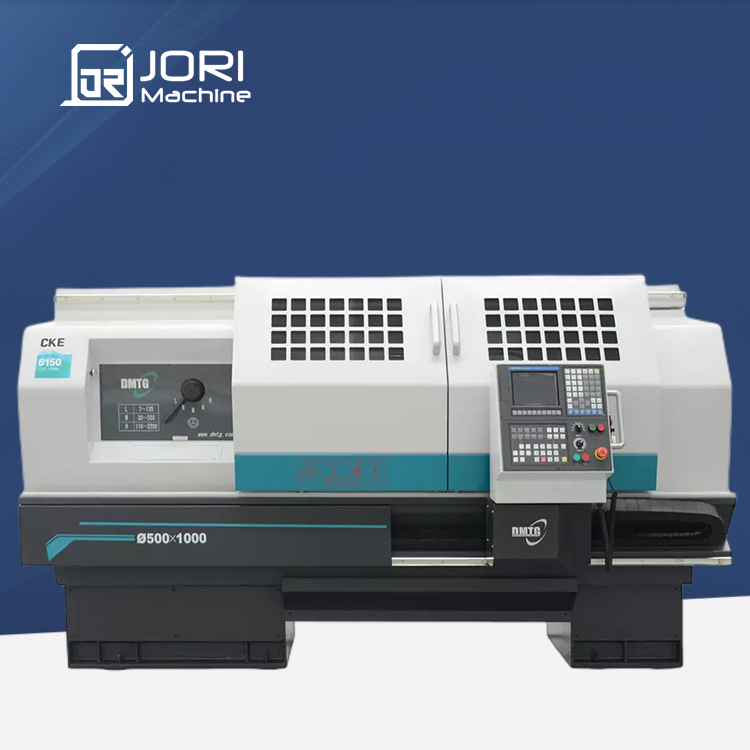

Feature:
Swing over bed: ∅ 500mm
Spindle bore: ∅ 82mm
Max. Workpiece Length: 750/1000/1500/2000mm
DMTG’s main products are Conventional lathes, Flat and slant Bed CNC Lathes, CNC Milling Machines, Vertical Machining Centers, 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers, and Automatic lines, etc.
| Items | Unit | Parameter |
| Capacity | ||
| Max swing diameter over bed | mm | φ500 |
| Max swing diameter over cross slide | mm | φ280 |
| Max workpiece length | mm | 1000 |
| Max cutting length | mm | 930 |
| Max turning diameter | mm | φ500 |
| Spindle center height | mm | 250 |
| Bed guideway width | mm | 400 |
| Spindle | ||
| Spindle motor power | kW | 7.5/11 |
| Spindle bore | mm | φ82 |
| Chuck size | mm | φ250 |
| Taper of spindle bore | Front end φ90 1:20 | |
| Type of spindle nose | D8 | |
| Spindle speed ranges | r/min | 7-2200 |
| Travel | ||
| Max travel of X-axis | mm | 280 |
| Max travel of Z-axis | mm | 935 |
| Rapid traverse of X/Z axis | m/min | 4/8 |
| Tool post | ||
| Tool shank size | mm | 25×25 |
| Tail stock | ||
| Diameter of tailstock quill | mm | φ75 |
| Travel of tailstock quill | mm | 150 |
| Taper of tailstock quill | No.5 MT | |
| Accuracy | ||
| X/Z axis positioning accuracy | mm | 0.018/0.021 |
| X/Z axis repeatability accuracy | mm | 0.006/0.008 |
| Control system and motor | ||
| CNC controller | FANUC 0i-TF(5) PLUS | |
| General | ||
| Machine dimensions (L*W*H) | mm | 2830X1750X1620 |
| Packing size | mm | 2930X1800X1900 |
| Net weight/Gross weight | Kg | 2600/3300 |
