Feature:

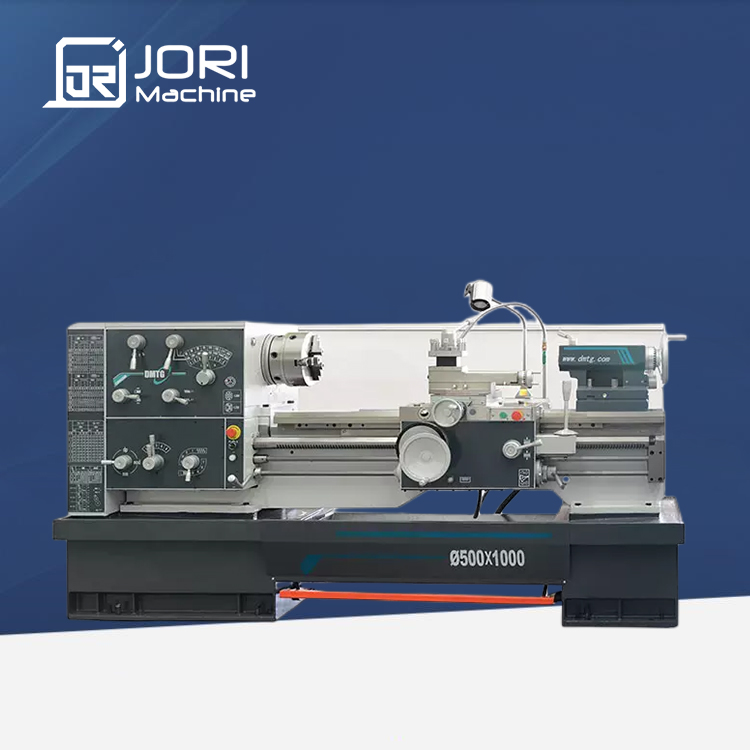

Swing over bed: ∅500mm
Workpiece length: 1000/1500/2000/3000mm
Spindle bore: ∅82m
DMTG’s main products are Conventional lathes, Flat and slant Bed CNC Lathes, CNC Milling Machines, Vertical Machining Centers, 5-axis Vertical Machining Centers, Horizontal Machining Centers, Gantry Machining Centers, and Automatic lines, etc.
| Items | Unit | Parameter |
| Capacity | ||
| Maximum swing diameter over bed | mm | 500 |
| Maximum swing diameter over cross slide | mm | 290 |
| Guideway width | mm | 394 |
| Maximum workpiece length | mm | 1000 |
| Maximum cutting length | mm | 950 |
| Spindle | ||
| Spindle bore diameter | mm | 82 |
| Spindle nose | mm | D8 |
| Spindle nose taper | mm | 90/ 1:20 |
| Spindle speed | RPM | 26~2000 |
| Spindle torque | Nm | 1100 |
| Tool Post | ||
| Tool shank size | mm | 25*25 |
| Travel of top slide | mm | 150 |
| Maximum travel of tool post | mm | 315(X axis) |
| mm | 950(Z axis) | |
| Tail stock | ||
| Diameter of tailstock quill | mm | 75 |
| Travel of tailstock quill | mm | 150 |
| Taper of tailstock | NO.5 MT | |
| Maximum lateral movement of tailstock | mm | ±15(±9/16〃) |
| Motor | ||
| Motor power | kw | 7.5 (10HP) |
| Speed | RPM | 1440 r/min |
| Motor power for rapid movement of tool post | w | 275(1/3HP) |
| Tool post rapid movement motor speed | RPM | 1360 |
| General | ||
| Machine dimensions (L*W*H) | mm | 2930*1223*1295 |
| Net weight | kg | 2120kg |
